Evenly balance a large ECS deployment across availability zones

How to use a capacity provider strategy to guarantee that containers are always evenly rebalanced across AZ's.

Nathan Peck
Nathan Peck
Senior Developer Advocate at AWS

About

Amazon Elastic Container Service is a serverless orchestrator that manages container deployments on your behalf.

Capacity providers are a built-in feature of Amazon ECS. A capacity provider launches Amazon EC2 capacity automatically whenever you need compute capacity to run containers.

This reference architecture shows how to create a set of zonal capacity providers, and use a capacity provider strategy to evenly distribute ECS tasks across multiple zonal capacity providers.

Why?

Amazon ECS comes with built-in placement strategies that serve the vast majority of workloads. In specific you could use the following “AZ balanced binpack” strategy to tell Amazon ECS to distribute containers evenly across multiple availability zones, while densely utilizing CPU in order to save infrastructure cost where possible:

spread(attribute:ecs.availability-zone), binpack(CPU)

However, task placement strategies are a best effort. Amazon ECS still places tasks even when the most optimal placement option is unavailable.

This means that in some circumstances Amazon ECS may choose to place an excessive number of tasks into one or two AZ’s. The following diagrams demonstrate one scenario in which this may occur.

Imagine a cluster of three instances distributed across three availability zones. Each instance has capacity to run four tasks:

Now you launch service A which deploys four copies of container A, distributed across availability zones:

Because there is one more task than there are availability zones and instances, the first instance in the first AZ gets two tasks instead of one.

Now you deploy a second service B, which deploys four copies of container B:

Because of the “binpack” part of the strategy, the first instance in the first AZ is once again selected to get two tasks instead of a single task. That instance is now packed full of tasks and can not host any additional tasks.

Now you deploy a third service C, which deploys four copies of container C:

This time the only instances that still have capacity are the two instances in the second and third availability zone. As a result these two instances each get two tasks.

The problem is that this third service is not actually distributed across all availability zones. If the workload had a high availability requirement to be distributed across three availability zones, then this reduced availability distribution may not be acceptable.

This is not the only scenario in which ECS tasks may end up unbalanced. Rolling deployments and scaling up may also choose to make denser usage of the currently available capacity rather than launching additional instances. This results in a deployment that is excessively concentrated into a single availability zone or two availability zones. In the best case the deployment is just excessively weighted in favor of one availability zone. In the worst case all tasks for a service could end up placed onto capacity from a single AZ.

In general, this problem gets less serious with larger services that have more desired count, and with an increased number of availability zones. However, instead of relying on higher scale and random chance, you can also utilize ECS capacity providers to enforce evenly balanced task placement.

Architecture

The following diagram shows how this reference architecture solves for even task balancing across availability zones:

  1. Instead of one large EC2 Auto Scaling group that spans all three availability zones, there is a separate EC2 Auto Scaling group for each availability zone.
  2. Each Auto Scaling group is linked to it’s own ECS capacity provider.
  3. An ECS capacity provider strategy is configured to distribute tasks for the service evenly across the three capacity providers.
  4. Each capacity provider then manages the capacity for it’s own zone, allowing zones to independently scale to a larger size if necessary to maintain a distributed task placement.

In the above example the same three services have been placed into the cluster. This time they are evenly balanced across all three availability zones. This has been accomplished by scaling up the first AZ to a larger size, while keeping some wasted space on the other two AZ’s. As a result there is one entire instance of aggregate wasted compute capacity, but all three services are distributed across all three AZ’s.

⚠️ Warning: This approach will deliberately waste EC2 capacity in order to evenly distribute tasks across availability zones. This capacity provider strategy is not optimized for cost. It is optimized for high availability.

Dependencies

This pattern requires the following local dependencies:

This architecture will be defined as a series of separate infrastructure as code modules that are linked together by a parent file that defines the application as a whole. Download each the following files. Instructions for deployment will follow.

Define the ECS cluster

This following cluster.yml file defines an ECS cluster, plus some supporting infrastructure that will be reused later on.

File: cluster.yml Language: yml
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273

AWSTemplateFormatVersion: '2010-09-09'
Description: EC2 ECS cluster that starts out empty, with no EC2 instances yet.
             An ECS capacity provider automatically launches more EC2 instances
             as required on the fly when you request ECS to launch services or
             standalone tasks.
Parameters:
  VpcId:
    Type: AWS::EC2::VPC::Id
    Description: VPC ID where the ECS cluster is launched

Resources:
  # Cluster that keeps track of container deployments
  ECSCluster:
    Type: AWS::ECS::Cluster
    Properties:
      ClusterSettings:
        - Name: containerInsights
          Value: enabled

  # Custom resource that force destroys the ASG. This cleans up EC2 instances that had
  # managed termination protection enabled, but which are not yet released.
  # This is necessary because ECS does not immediately release an EC2 instance from termination
  # protection as soon as the instance is no longer running tasks. There is a cooldown delay.
  # In the case of tearing down the CloudFormation stack, CloudFormation will delete the
  # AWS::ECS::Service and immediately move on to tearing down the AWS::ECS::Cluster, disconnecting
  # the AWS::AutoScaling::AutoScalingGroup from ECS management too fast, before ECS has a chance
  # to asynchronously turn off managed instance protection on the EC2 instances.
  # This will leave some EC2 instances stranded in a state where they are protected from scale-in forever.
  # This then blocks the AWS::AutoScaling::AutoScalingGroup from cleaning itself up.
  # The custom resource function force destroys the autoscaling group when tearing down the stack,
  # avoiding the issue of protected EC2 instances that can never be cleaned up.
  CustomAsgDestroyerFunction:
    Type: AWS::Lambda::Function
    Properties:
      Code:
        ZipFile: |
          const { AutoScalingClient, DeleteAutoScalingGroupCommand } = require("@aws-sdk/client-auto-scaling");
          const response = require('cfn-response');

          exports.handler = async function(event, context) {
            console.log(event);

            if (event.RequestType !== "Delete") {
              await response.send(event, context, response.SUCCESS);
              return;
            }

            const autoscaling = new AutoScalingClient({ region: event.ResourceProperties.Region });

            const input = {
              AutoScalingGroupName: event.ResourceProperties.AutoScalingGroupName,
              ForceDelete: true
            };
            const command = new DeleteAutoScalingGroupCommand(input);
            const deleteResponse = await autoscaling.send(command);
            console.log(deleteResponse);

            await response.send(event, context, response.SUCCESS);
          };
      Handler: index.handler
      Runtime: nodejs20.x
      Timeout: 30
      Role: !GetAtt CustomAsgDestroyerRole.Arn

  # The role used by the ASG destroyer. Note that this role
  # starts out with no permissions to actually delete any ASG's. The stack that
  # creates the ASG also adds permissions to this role to allow the role to
  # delete the ASG
  CustomAsgDestroyerRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Principal:
              Service:
                - lambda.amazonaws.com
            Action:
              - sts:AssumeRole
      ManagedPolicyArns:
        # https://docs.aws.amazon.com/aws-managed-policy/latest/reference/AWSLambdaBasicExecutionRole.html
        - arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole

  # Turn on ENI trunking for the EC2 instances. This setting is not on by default,
  # but it is highly important for increasing the density of AWS VPC networking mode
  # tasks per instance. Additionally, it is not controllable by default in CloudFormation
  # because it has some complexity of needing to be turned on by a bearer of the role
  # of the EC2 instances themselves. With this custom function we can assume the EC2 role
  # then use that role to call the ecs:PutAccountSetting API in order to enable
  # ENI trunking
  CustomEniTrunkingFunction:
    Type: AWS::Lambda::Function
    Properties:
      Code:
        ZipFile: |
          const { ECSClient, PutAccountSettingCommand } = require("@aws-sdk/client-ecs");
          const { STSClient, AssumeRoleCommand } = require("@aws-sdk/client-sts");

          const response = require('cfn-response');

          exports.handler = async function(event, context) {
            console.log(event);

            if (event.RequestType == "Delete") {
              await response.send(event, context, response.SUCCESS);
              return;
            }

            const sts = new STSClient({ region: event.ResourceProperties.Region });

            const assumeRoleResponse = await sts.send(new AssumeRoleCommand({
              RoleArn: event.ResourceProperties.EC2Role,
              RoleSessionName: "eni-trunking-enable-session",
              DurationSeconds: 900
            }));

            // Instantiate an ECS client using the credentials of the EC2 role
            const ecs = new ECSClient({
              region: event.ResourceProperties.Region,
              credentials: {
                accessKeyId: assumeRoleResponse.Credentials.AccessKeyId,
                secretAccessKey: assumeRoleResponse.Credentials.SecretAccessKey,
                sessionToken: assumeRoleResponse.Credentials.SessionToken
              }
            });

            const putAccountResponse = await ecs.send(new PutAccountSettingCommand({
              name: 'awsvpcTrunking',
              value: 'enabled'
            }));
            console.log(putAccountResponse);

            await response.send(event, context, response.SUCCESS);
          };
      Handler: index.handler
      Runtime: nodejs20.x
      Timeout: 30
      Role: !GetAtt CustomEniTrunkingRole.Arn

  # The role used by the ENI trunking custom resource
  CustomEniTrunkingRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Principal:
              Service:
                - lambda.amazonaws.com
            Action:
              - sts:AssumeRole
      ManagedPolicyArns:
        # https://docs.aws.amazon.com/aws-managed-policy/latest/reference/AWSLambdaBasicExecutionRole.html
        - arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole

  # This allows the custom CloudFormation resource in Lambda
  # to assume the role that is used by the EC2 instances. The Lambda function must
  # assume this role because the ecs:PutAccountSetting must be called either
  # by the role that the setting is for, or by the root account, and we aren't
  # using the root account for CloudFormation.
  AllowEniTrunkingRoleToAssumeEc2Role:
    Type: AWS::IAM::Policy
    Properties:
      Roles:
        - !Ref CustomEniTrunkingRole
      PolicyName: allow-to-assume-ec2-role
      PolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Action: sts:AssumeRole
            Resource: !GetAtt EC2Role.Arn

  # This is the actual custom resource, which triggers the invocation
  # of the Lambda function that enabled ENI trunking during the stack deploy
  CustomEniTrunking:
    Type: Custom::CustomEniTrunking
    DependsOn:
      - AllowEniTrunkingRoleToAssumeEc2Role
    Properties:
      ServiceToken: !GetAtt CustomEniTrunkingFunction.Arn
      Region: !Ref "AWS::Region"
      EC2Role: !GetAtt EC2Role.Arn

  # A security group for the EC2 hosts that will run the containers.
  # This can be used to limit incoming traffic to or outgoing traffic
  # from the container's host EC2 instance.
  ContainerHostSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: Access to the EC2 hosts that run containers
      VpcId: !Ref VpcId

  # Role for the EC2 hosts. This allows the ECS agent on the EC2 hosts
  # to communciate with the ECS control plane, as well as download the docker
  # images from ECR to run on your host.
  EC2Role:
    Type: AWS::IAM::Role
    Properties:
      Path: /
      AssumeRolePolicyDocument:
        Statement:
          # Allow the EC2 instances to assume this role
          - Effect: Allow
            Principal:
              Service: [ec2.amazonaws.com]
            Action: ['sts:AssumeRole']
          # Allow the ENI trunking function to assume this role in order to enable
          # ENI trunking while operating under the identity of this role
          - Effect: Allow
            Principal:
              AWS: !GetAtt CustomEniTrunkingRole.Arn
            Action: ['sts:AssumeRole']

      # See reference: https://docs.aws.amazon.com/AmazonECS/latest/developerguide/security-iam-awsmanpol.html#security-iam-awsmanpol-AmazonEC2ContainerServiceforEC2Role
      ManagedPolicyArns:
        - arn:aws:iam::aws:policy/service-role/AmazonEC2ContainerServiceforEC2Role

      # The ENI trunking function will assume this role and then use
      # the ecs:PutAccountSetting to set ENI trunking on for this role
      Policies:
        - PolicyName: allow-to-modify-ecs-settings
          PolicyDocument:
            Version: 2012-10-17
            Statement:
              - Effect: Allow
                Action: ecs:PutAccountSetting
                Resource: '*'

  # This is a role which is used by the ECS agent
  # to download images, and upload logs.
  ECSTaskExecutionRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Statement:
          - Effect: Allow
            Principal:
              Service: [ecs-tasks.amazonaws.com]
            Action: ['sts:AssumeRole']
            Condition:
              ArnLike:
                aws:SourceArn: !Sub arn:aws:ecs:${AWS::Region}:${AWS::AccountId}:*
              StringEquals:
                aws:SourceAccount: !Ref AWS::AccountId
      Path: /

      # This role enables basic features of ECS. See reference:
      # https://docs.aws.amazon.com/AmazonECS/latest/developerguide/security-iam-awsmanpol.html#security-iam-awsmanpol-AmazonECSTaskExecutionRolePolicy
      ManagedPolicyArns:
        - arn:aws:iam::aws:policy/service-role/AmazonECSTaskExecutionRolePolicy

Outputs:
  ClusterName:
    Description: The ECS cluster into which to launch resources
    Value: !Ref ECSCluster
  ECSTaskExecutionRole:
    Description: The role used to start up a task
    Value: !Ref ECSTaskExecutionRole
  ContainerHostSecurityGroup:
    Description: The security group of the host EC2 instances
    Value: !Ref ContainerHostSecurityGroup
  EC2Role:
    Description: The role used by EC2 instances in the cluster
    Value: !Ref EC2Role
  CustomAsgDestroyerFunctionArn:
    Description: The Lambda function that assists with cleaning up capacity provider ASG's
    Value: !GetAtt CustomAsgDestroyerFunction.Arn
  CustomAsgDestroyerFunctionRole:
    Description: The Lambda function's role, used for adding policies to allow deleting an ASG
    Value: !Ref CustomAsgDestroyerRole

Things to look for:

  • CustomAsgDestroyerFunction - This custom CloudFormation resource helps clean up the stack faster on tear down
  • CustomEniTrunkingFunction - A custom CloudFormation resource that enables ENI trunking for the EC2 instances

Define a zonal capacity provider

Now download the following single-az-capacity-provider.yml file, to define an Auto Scaling Group and capacity provider for each availability zone:

File: single-az-capacity-provider.yml Language: yml
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143

AWSTemplateFormatVersion: '2010-09-09'
Description: EC2 ECS cluster that starts out empty, with no EC2 instances yet.
             An ECS capacity provider automatically launches more EC2 instances
             as required on the fly when you request ECS to launch services or
             standalone tasks.
Parameters:
  InstanceType:
    Type: String
    Default: c5.xlarge
    Description: Class of EC2 instance used to host containers. Choose t2 for testing, m5 for general purpose, c5 for CPU intensive services, and r5 for memory intensive services
    AllowedValues: ["a1.2xlarge", "a1.4xlarge", "a1.large", "a1.medium", "a1.metal", "a1.xlarge", "c1.medium", "c1.xlarge", "c3.2xlarge", "c3.4xlarge", "c3.8xlarge", "c3.large", "c3.xlarge", "c4.2xlarge", "c4.4xlarge", "c4.8xlarge", "c4.large", "c4.xlarge", "c5.12xlarge", "c5.18xlarge", "c5.24xlarge", "c5.2xlarge", "c5.4xlarge", "c5.9xlarge", "c5.large", "c5.metal", "c5.xlarge", "c5a.12xlarge", "c5a.16xlarge", "c5a.24xlarge", "c5a.2xlarge", "c5a.4xlarge", "c5a.8xlarge", "c5a.large", "c5a.xlarge", "c5ad.12xlarge", "c5ad.16xlarge", "c5ad.24xlarge", "c5ad.2xlarge", "c5ad.4xlarge", "c5ad.8xlarge", "c5ad.large", "c5ad.xlarge", "c5d.12xlarge", "c5d.18xlarge", "c5d.24xlarge", "c5d.2xlarge", "c5d.4xlarge", "c5d.9xlarge", "c5d.large", "c5d.metal", "c5d.xlarge", "c5n.18xlarge", "c5n.2xlarge", "c5n.4xlarge", "c5n.9xlarge", "c5n.large", "c5n.metal", "c5n.xlarge", "c6a.12xlarge", "c6a.16xlarge", "c6a.24xlarge", "c6a.2xlarge", "c6a.32xlarge", "c6a.48xlarge", "c6a.4xlarge", "c6a.8xlarge", "c6a.large", "c6a.metal", "c6a.xlarge", "c6g.12xlarge", "c6g.16xlarge", "c6g.2xlarge", "c6g.4xlarge", "c6g.8xlarge", "c6g.large", "c6g.medium", "c6g.metal", "c6g.xlarge", "c6gd.12xlarge", "c6gd.16xlarge", "c6gd.2xlarge", "c6gd.4xlarge", "c6gd.8xlarge", "c6gd.large", "c6gd.medium", "c6gd.metal", "c6gd.xlarge", "c6gn.12xlarge", "c6gn.16xlarge", "c6gn.2xlarge", "c6gn.4xlarge", "c6gn.8xlarge", "c6gn.large", "c6gn.medium", "c6gn.xlarge", "c6i.12xlarge", "c6i.16xlarge", "c6i.24xlarge", "c6i.2xlarge", "c6i.32xlarge", "c6i.4xlarge", "c6i.8xlarge", "c6i.large", "c6i.metal", "c6i.xlarge", "c6id.12xlarge", "c6id.16xlarge", "c6id.24xlarge", "c6id.2xlarge", "c6id.32xlarge", "c6id.4xlarge", "c6id.8xlarge", "c6id.large", "c6id.metal", "c6id.xlarge", "c6in.12xlarge", "c6in.16xlarge", "c6in.24xlarge", "c6in.2xlarge", "c6in.32xlarge", "c6in.4xlarge", "c6in.8xlarge", "c6in.large", "c6in.metal", "c6in.xlarge", "c7g.12xlarge", "c7g.16xlarge", "c7g.2xlarge", "c7g.4xlarge", "c7g.8xlarge", "c7g.large", "c7g.medium", "c7g.metal", "c7g.xlarge", "c7gd.12xlarge", "c7gd.16xlarge", "c7gd.2xlarge", "c7gd.4xlarge", "c7gd.8xlarge", "c7gd.large", "c7gd.medium", "c7gd.xlarge", "c7gn.12xlarge", "c7gn.16xlarge", "c7gn.2xlarge", "c7gn.4xlarge", "c7gn.8xlarge", "c7gn.large", "c7gn.medium", "c7gn.xlarge", "cc2.8xlarge", "cr1.8xlarge", "d2.2xlarge", "d2.4xlarge", "d2.8xlarge", "d2.xlarge", "d3.2xlarge", "d3.4xlarge", "d3.8xlarge", "d3.xlarge", "d3en.12xlarge", "d3en.2xlarge", "d3en.4xlarge", "d3en.6xlarge", "d3en.8xlarge", "d3en.xlarge", "dl1.24xlarge", "f1.16xlarge", "f1.2xlarge", "f1.4xlarge", "g2.2xlarge", "g2.8xlarge", "g3.16xlarge", "g3.4xlarge", "g3.8xlarge", "g3s.xlarge", "g4ad.16xlarge", "g4ad.2xlarge", "g4ad.4xlarge", "g4ad.8xlarge", "g4ad.xlarge", "g4dn.12xlarge", "g4dn.16xlarge", "g4dn.2xlarge", "g4dn.4xlarge", "g4dn.8xlarge", "g4dn.metal", "g4dn.xlarge", "g5.12xlarge", "g5.16xlarge", "g5.24xlarge", "g5.2xlarge", "g5.48xlarge", "g5.4xlarge", "g5.8xlarge", "g5.xlarge", "g5g.16xlarge", "g5g.2xlarge", "g5g.4xlarge", "g5g.8xlarge", "g5g.metal", "g5g.xlarge", "h1.16xlarge", "h1.2xlarge", "h1.4xlarge", "h1.8xlarge", "hpc7g.16xlarge", "hpc7g.4xlarge", "hpc7g.8xlarge", "hs1.8xlarge", "i2.2xlarge", "i2.4xlarge", "i2.8xlarge", "i2.large", "i2.xlarge", "i3.16xlarge", "i3.2xlarge", "i3.4xlarge", "i3.8xlarge", "i3.large", "i3.metal", "i3.xlarge", "i3en.12xlarge", "i3en.24xlarge", "i3en.2xlarge", "i3en.3xlarge", "i3en.6xlarge", "i3en.large", "i3en.metal", "i3en.xlarge", "i4g.16xlarge", "i4g.2xlarge", "i4g.4xlarge", "i4g.8xlarge", "i4g.large", "i4g.xlarge", "i4i.16xlarge", "i4i.2xlarge", "i4i.32xlarge", "i4i.4xlarge", "i4i.8xlarge", "i4i.large", "i4i.metal", "i4i.xlarge", "im4gn.16xlarge", "im4gn.2xlarge", "im4gn.4xlarge", "im4gn.8xlarge", "im4gn.large", "im4gn.xlarge", "inf1.24xlarge", "inf1.2xlarge", "inf1.6xlarge", "inf1.xlarge", "inf2.24xlarge", "inf2.48xlarge", "inf2.8xlarge", "inf2.xlarge", "is4gen.2xlarge", "is4gen.4xlarge", "is4gen.8xlarge", "is4gen.large", "is4gen.medium", "is4gen.xlarge", "m1.large", "m1.medium", "m1.small", "m1.xlarge", "m2.2xlarge", "m2.4xlarge", "m2.xlarge", "m3.2xlarge", "m3.large", "m3.medium", "m3.xlarge", "m4.10xlarge", "m4.16xlarge", "m4.2xlarge", "m4.4xlarge", "m4.large", "m4.xlarge", "m5.12xlarge", "m5.16xlarge", "m5.24xlarge", "m5.2xlarge", "m5.4xlarge", "m5.8xlarge", "m5.large", "m5.metal", "m5.xlarge", "m5a.12xlarge", "m5a.16xlarge", "m5a.24xlarge", "m5a.2xlarge", "m5a.4xlarge", "m5a.8xlarge", "m5a.large", "m5a.xlarge", "m5ad.12xlarge", "m5ad.16xlarge", "m5ad.24xlarge", "m5ad.2xlarge", "m5ad.4xlarge", "m5ad.8xlarge", "m5ad.large", "m5ad.xlarge", "m5d.12xlarge", "m5d.16xlarge", "m5d.24xlarge", "m5d.2xlarge", "m5d.4xlarge", "m5d.8xlarge", "m5d.large", "m5d.metal", "m5d.xlarge", "m5dn.12xlarge", "m5dn.16xlarge", "m5dn.24xlarge", "m5dn.2xlarge", "m5dn.4xlarge", "m5dn.8xlarge", "m5dn.large", "m5dn.metal", "m5dn.xlarge", "m5n.12xlarge", "m5n.16xlarge", "m5n.24xlarge", "m5n.2xlarge", "m5n.4xlarge", "m5n.8xlarge", "m5n.large", "m5n.metal", "m5n.xlarge", "m5zn.12xlarge", "m5zn.2xlarge", "m5zn.3xlarge", "m5zn.6xlarge", "m5zn.large", "m5zn.metal", "m5zn.xlarge", "m6a.12xlarge", "m6a.16xlarge", "m6a.24xlarge", "m6a.2xlarge", "m6a.32xlarge", "m6a.48xlarge", "m6a.4xlarge", "m6a.8xlarge", "m6a.large", "m6a.metal", "m6a.xlarge", "m6g.12xlarge", "m6g.16xlarge", "m6g.2xlarge", "m6g.4xlarge", "m6g.8xlarge", "m6g.large", "m6g.medium", "m6g.metal", "m6g.xlarge", "m6gd.12xlarge", "m6gd.16xlarge", "m6gd.2xlarge", "m6gd.4xlarge", "m6gd.8xlarge", "m6gd.large", "m6gd.medium", "m6gd.metal", "m6gd.xlarge", "m6i.12xlarge", "m6i.16xlarge", "m6i.24xlarge", "m6i.2xlarge", "m6i.32xlarge", "m6i.4xlarge", "m6i.8xlarge", "m6i.large", "m6i.metal", "m6i.xlarge", "m6id.12xlarge", "m6id.16xlarge", "m6id.24xlarge", "m6id.2xlarge", "m6id.32xlarge", "m6id.4xlarge", "m6id.8xlarge", "m6id.large", "m6id.metal", "m6id.xlarge", "m6idn.12xlarge", "m6idn.16xlarge", "m6idn.24xlarge", "m6idn.2xlarge", "m6idn.32xlarge", "m6idn.4xlarge", "m6idn.8xlarge", "m6idn.large", "m6idn.metal", "m6idn.xlarge", "m6in.12xlarge", "m6in.16xlarge", "m6in.24xlarge", "m6in.2xlarge", "m6in.32xlarge", "m6in.4xlarge", "m6in.8xlarge", "m6in.large", "m6in.metal", "m6in.xlarge", "m7a.12xlarge", "m7a.16xlarge", "m7a.24xlarge", "m7a.2xlarge", "m7a.32xlarge", "m7a.48xlarge", "m7a.4xlarge", "m7a.8xlarge", "m7a.large", "m7a.medium", "m7a.metal-48xl", "m7a.xlarge", "m7g.12xlarge", "m7g.16xlarge", "m7g.2xlarge", "m7g.4xlarge", "m7g.8xlarge", "m7g.large", "m7g.medium", "m7g.metal", "m7g.xlarge", "m7gd.12xlarge", "m7gd.16xlarge", "m7gd.2xlarge", "m7gd.4xlarge", "m7gd.8xlarge", "m7gd.large", "m7gd.medium", "m7gd.xlarge", "m7i-flex.2xlarge", "m7i-flex.4xlarge", "m7i-flex.8xlarge", "m7i-flex.large", "m7i-flex.xlarge", "m7i.12xlarge", "m7i.16xlarge", "m7i.24xlarge", "m7i.2xlarge", "m7i.48xlarge", "m7i.4xlarge", "m7i.8xlarge", "m7i.large", "m7i.xlarge", "mac1.metal", "mac2.metal", "p2.16xlarge", "p2.8xlarge", "p2.xlarge", "p3.16xlarge", "p3.2xlarge", "p3.8xlarge", "p3dn.24xlarge", "p4d.24xlarge", "p4de.24xlarge", "p5.48xlarge", "r3.2xlarge", "r3.4xlarge", "r3.8xlarge", "r3.large", "r3.xlarge", "r4.16xlarge", "r4.2xlarge", "r4.4xlarge", "r4.8xlarge", "r4.large", "r4.xlarge", "r5.12xlarge", "r5.16xlarge", "r5.24xlarge", "r5.2xlarge", "r5.4xlarge", "r5.8xlarge", "r5.large", "r5.metal", "r5.xlarge", "r5a.12xlarge", "r5a.16xlarge", "r5a.24xlarge", "r5a.2xlarge", "r5a.4xlarge", "r5a.8xlarge", "r5a.large", "r5a.xlarge", "r5ad.12xlarge", "r5ad.16xlarge", "r5ad.24xlarge", "r5ad.2xlarge", "r5ad.4xlarge", "r5ad.8xlarge", "r5ad.large", "r5ad.xlarge", "r5b.12xlarge", "r5b.16xlarge", "r5b.24xlarge", "r5b.2xlarge", "r5b.4xlarge", "r5b.8xlarge", "r5b.large", "r5b.metal", "r5b.xlarge", "r5d.12xlarge", "r5d.16xlarge", "r5d.24xlarge", "r5d.2xlarge", "r5d.4xlarge", "r5d.8xlarge", "r5d.large", "r5d.metal", "r5d.xlarge", "r5dn.12xlarge", "r5dn.16xlarge", "r5dn.24xlarge", "r5dn.2xlarge", "r5dn.4xlarge", "r5dn.8xlarge", "r5dn.large", "r5dn.metal", "r5dn.xlarge", "r5n.12xlarge", "r5n.16xlarge", "r5n.24xlarge", "r5n.2xlarge", "r5n.4xlarge", "r5n.8xlarge", "r5n.large", "r5n.metal", "r5n.xlarge", "r6a.12xlarge", "r6a.16xlarge", "r6a.24xlarge", "r6a.2xlarge", "r6a.32xlarge", "r6a.48xlarge", "r6a.4xlarge", "r6a.8xlarge", "r6a.large", "r6a.metal", "r6a.xlarge", "r6g.12xlarge", "r6g.16xlarge", "r6g.2xlarge", "r6g.4xlarge", "r6g.8xlarge", "r6g.large", "r6g.medium", "r6g.metal", "r6g.xlarge", "r6gd.12xlarge", "r6gd.16xlarge", "r6gd.2xlarge", "r6gd.4xlarge", "r6gd.8xlarge", "r6gd.large", "r6gd.medium", "r6gd.metal", "r6gd.xlarge", "r6i.12xlarge", "r6i.16xlarge", "r6i.24xlarge", "r6i.2xlarge", "r6i.32xlarge", "r6i.4xlarge", "r6i.8xlarge", "r6i.large", "r6i.metal", "r6i.xlarge", "r6id.12xlarge", "r6id.16xlarge", "r6id.24xlarge", "r6id.2xlarge", "r6id.32xlarge", "r6id.4xlarge", "r6id.8xlarge", "r6id.large", "r6id.metal", "r6id.xlarge", "r6idn.12xlarge", "r6idn.16xlarge", "r6idn.24xlarge", "r6idn.2xlarge", "r6idn.32xlarge", "r6idn.4xlarge", "r6idn.8xlarge", "r6idn.large", "r6idn.metal", "r6idn.xlarge", "r6in.12xlarge", "r6in.16xlarge", "r6in.24xlarge", "r6in.2xlarge", "r6in.32xlarge", "r6in.4xlarge", "r6in.8xlarge", "r6in.large", "r6in.metal", "r6in.xlarge", "r7g.12xlarge", "r7g.16xlarge", "r7g.2xlarge", "r7g.4xlarge", "r7g.8xlarge", "r7g.large", "r7g.medium", "r7g.metal", "r7g.xlarge", "r7gd.12xlarge", "r7gd.16xlarge", "r7gd.2xlarge", "r7gd.4xlarge", "r7gd.8xlarge", "r7gd.large", "r7gd.medium", "r7gd.xlarge", "r7iz.12xlarge", "r7iz.16xlarge", "r7iz.2xlarge", "r7iz.32xlarge", "r7iz.4xlarge", "r7iz.8xlarge", "r7iz.large", "r7iz.xlarge", "t1.micro", "t2.2xlarge", "t2.large", "t2.medium", "t2.micro", "t2.nano", "t2.small", "t2.xlarge", "t3.2xlarge", "t3.large", "t3.medium", "t3.micro", "t3.nano", "t3.small", "t3.xlarge", "t3a.2xlarge", "t3a.large", "t3a.medium", "t3a.micro", "t3a.nano", "t3a.small", "t3a.xlarge", "t4g.2xlarge", "t4g.large", "t4g.medium", "t4g.micro", "t4g.nano", "t4g.small", "t4g.xlarge", "trn1.2xlarge", "trn1.32xlarge", "trn1n.32xlarge", "u-12tb1.112xlarge", "u-18tb1.112xlarge", "u-24tb1.112xlarge", "u-3tb1.56xlarge", "u-6tb1.112xlarge", "u-6tb1.56xlarge", "u-9tb1.112xlarge", "vt1.24xlarge", "vt1.3xlarge", "vt1.6xlarge", "x1.16xlarge", "x1.32xlarge", "x1e.16xlarge", "x1e.2xlarge", "x1e.32xlarge", "x1e.4xlarge", "x1e.8xlarge", "x1e.xlarge", "x2gd.12xlarge", "x2gd.16xlarge", "x2gd.2xlarge", "x2gd.4xlarge", "x2gd.8xlarge", "x2gd.large", "x2gd.medium", "x2gd.metal", "x2gd.xlarge", "x2idn.16xlarge", "x2idn.24xlarge", "x2idn.32xlarge", "x2idn.metal", "x2iedn.16xlarge", "x2iedn.24xlarge", "x2iedn.2xlarge", "x2iedn.32xlarge", "x2iedn.4xlarge", "x2iedn.8xlarge", "x2iedn.metal", "x2iedn.xlarge", "x2iezn.12xlarge", "x2iezn.2xlarge", "x2iezn.4xlarge", "x2iezn.6xlarge", "x2iezn.8xlarge", "x2iezn.metal", "z1d.12xlarge", "z1d.2xlarge", "z1d.3xlarge", "z1d.6xlarge", "z1d.large", "z1d.metal", "z1d.xlarge"]
    ConstraintDescription: Please choose a valid instance type.
  DesiredCapacity:
    Type: Number
    Default: '0'
    Description: Number of EC2 instances to launch in your ECS cluster.
  MaxSize:
    Type: Number
    Default: '100'
    Description: Maximum number of EC2 instances that can be launched in your ECS cluster.
  ECSAMI:
    Type: AWS::SSM::Parameter::Value<AWS::EC2::Image::Id>
    Default: /aws/service/ecs/optimized-ami/amazon-linux-2/recommended/image_id
    Description: The Amazon Machine Image ID used for the cluster, leave it as the default value to get the latest AMI
  SubnetId:
    Type: AWS::EC2::Subnet::Id
    Description: A single subnet ID to launch the ECS nodes in
  ClusterName:
    Type: String
    Description: The ECS cluster that this capacity provider will be associated with
  EC2Role:
    Type: String
    Description: The role that the EC2 instances will use
  ContainerHostSecurityGroup:
    Type: AWS::EC2::SecurityGroup::Id
    Description: The security group used by the EC2 instances
  CustomAsgDestroyerFunctionArn:
    Type: String
    Description: ARN of a shared Lambda function that provides the logic for a custom CloudFormation
                 resource that helps cleanup ASG's associated with an ECS capacity provider.
  CustomAsgDestroyerFunctionRole:
    Type: String
    Description: The role used by the ASG destroyer function

Resources:
  # This allows the ASG destroyer to destroy the capacity provider ASG from this stack.
  AllowAsgDestroyerToDestroyThisAsg:
    Type: AWS::IAM::Policy
    Properties:
      Roles:
        - !Ref CustomAsgDestroyerFunctionRole
      PolicyName: !Sub allow-to-destroy-asg-${ECSAutoScalingGroup}
      PolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Action: autoscaling:DeleteAutoScalingGroup
            Resource: !Sub arn:aws:autoscaling:${AWS::Region}:${AWS::AccountId}:autoScalingGroup:*:autoScalingGroupName/${ECSAutoScalingGroup}

  # This configures a custom hook that helps destroy the ASG cleanly when
  # tearing down the CloudFormation stack.
  CustomAsgDestroyer:
    Type: Custom::AsgDestroyer
    DependsOn:
      - AllowAsgDestroyerToDestroyThisAsg
    Properties:
      ServiceToken: !Ref CustomAsgDestroyerFunctionArn
      Region: !Ref "AWS::Region"
      AutoScalingGroupName: !Ref ECSAutoScalingGroup

  # Autoscaling group. This launches the actual EC2 instances that will register
  # themselves as members of the cluster, and run the docker containers.
  ECSAutoScalingGroup:
    Type: AWS::AutoScaling::AutoScalingGroup
    Properties:
      VPCZoneIdentifier:
        - !Ref SubnetId
      LaunchTemplate:
        LaunchTemplateId: !Ref ContainerInstances
        Version: !GetAtt ContainerInstances.LatestVersionNumber
      MinSize: 0
      MaxSize: !Ref MaxSize
      DesiredCapacity: !Ref DesiredCapacity
      NewInstancesProtectedFromScaleIn: true
    UpdatePolicy:
      AutoScalingReplacingUpdate:
        WillReplace: 'true'

  # The config for each instance that is added to the cluster
  ContainerInstances:
    Type: AWS::EC2::LaunchTemplate
    Properties:
      LaunchTemplateData:
        ImageId: !Ref ECSAMI
        InstanceType: !Ref InstanceType
        IamInstanceProfile:
          Name: !Ref EC2InstanceProfile
        SecurityGroupIds:
          - !Ref ContainerHostSecurityGroup
        UserData:
          # This injected configuration file is how the EC2 instance
          # knows which ECS cluster on your AWS account it should be joining
          Fn::Base64: !Sub |
            #!/bin/bash
            echo ECS_CLUSTER=${ClusterName} >> /etc/ecs/ecs.config
        BlockDeviceMappings:
          - DeviceName: "/dev/xvda"
            Ebs:
              VolumeSize: 50
              VolumeType: gp3
        # Disable IMDSv1, and require IMDSv2
        MetadataOptions:
          HttpEndpoint: enabled
          HttpTokens: required
  EC2InstanceProfile:
    Type: AWS::IAM::InstanceProfile
    Properties:
      Path: /
      Roles:
        - !Ref EC2Role

  # Create an ECS capacity provider to attach the ASG to the ECS cluster
  # so that it autoscales as we launch more containers
  CapacityProvider:
    Type: AWS::ECS::CapacityProvider
    Properties:
      AutoScalingGroupProvider:
        AutoScalingGroupArn: !Ref ECSAutoScalingGroup
        ManagedScaling:
          InstanceWarmupPeriod: 60
          MinimumScalingStepSize: 1
          MaximumScalingStepSize: 100
          Status: ENABLED
          # Percentage of cluster reservation to try to maintain
          TargetCapacity: 100
        ManagedTerminationProtection: ENABLED
        ManagedDraining: ENABLED

Outputs:
  CapacityProvider:
    Description: The cluster capacity provider that the service should use
                 to request capacity when it wants to start up a task
    Value: !Ref CapacityProvider

This pattern will be reused one time for each different AZ that we wish to host tasks in. Things to look for in this template:

  • AWS::AutoScaling::AutoScalingGroup - The Auto Scaling group that will launch EC2 instances. Notice that this is a single zonal Auto Scaling group.
  • AWS::ECS::CapacityProvider - The ECS capacity provider that will scale the Auto Scaling group up and down in response to task launches
  • Custom::AsgDestroyer - This instantiates the custom CloudFormation resource that destroy the Auto Scaling Group on stack teardown.

Define the capacity provider association

In order to use a capacity provider with an ECS cluster it must first be associated with the cluster. This capacity-provider-associations.yml file defines this association:

File: capacity-provider-associations.yml Language: yml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

AWSTemplateFormatVersion: "2010-09-09"
Description: This stack defines the capacity provider strategy that distributes
             tasks evenly across all zonal capacity providers for the cluster.

Parameters:
  ClusterName:
    Type: String
    Description: The cluster that uses the capacity providers
  CapacityProvider00:
    Type: String
    Description: The first capacity provider
  CapacityProvider01:
    Type: String
    Description: The second capacity provider
  CapacityProvider02:
    Type: String
    Description: The third capacity provider

Resources:

  # Create a cluster capacity provider assocation list so that the cluster
  # will use the capacity provider
  CapacityProviderAssociation:
    Type: AWS::ECS::ClusterCapacityProviderAssociations
    Properties:
      CapacityProviders:
        - !Ref CapacityProvider00
        - !Ref CapacityProvider01
        - !Ref CapacityProvider02
      Cluster: !Ref ClusterName
      DefaultCapacityProviderStrategy:
        - Base: 0
          CapacityProvider: !Ref CapacityProvider00
          Weight: 1
        - Base: 0
          CapacityProvider: !Ref CapacityProvider01
          Weight: 1
        - Base: 0
          CapacityProvider: !Ref CapacityProvider02
          Weight: 1

Things to note:

  • A default capacity provider strategy is configured to distribute tasks evenly across each of three capacity providers. You can tune the Base later on depending on the total size of your deployment, but the Weight should be set to one for all capacity providers.
  • If you expect to launch a large number of containers then you could utilize the capacity provider strategy Base to ensure that a minimum number of tasks are always deployed to each capacity provider. For example if you expect to always run more than 300 tasks, you could set a base of one hundred on each capacity provider. The first 300 tasks will always be distributed perfectly evenly across the three capacity providers. Any remaining tasks will be distributed evenly across the capacity providers. This can help ensure even balance even under unusual circumstances such as all tasks in specific AZ crashing and undergoing replacement at the same time.

Define a service

When launching a service in the cluster you need to specify a capacity provider strategy on the service as well. This service-capacity-provider.yml defines the service that will run in the cluster, and distributes it across all three capacity providers:

File: service-capacity-provider.yml Language: yml
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130

AWSTemplateFormatVersion: '2010-09-09'
Description: An example service that deploys onto EC2 capacity with
             a capacity provider strategy that autoscales the underlying
             EC2 Capacity as needed by the service

Parameters:
  VpcId:
    Type: String
    Description: The VPC that the service is running inside of
  SubnetIds:
    Type: List<AWS::EC2::Subnet::Id>
    Description: List of subnet IDs the AWS VPC tasks are inside of
  ClusterName:
    Type: String
    Description: The name of the ECS cluster into which to launch capacity.
  ECSTaskExecutionRole:
    Type: String
    Description: The role used to start up an ECS task
  CapacityProvider00:
    Type: String
    Description: First AZ capacity provider
  CapacityProvider01:
    Type: String
    Description: Second AZ capacity provider
  CapacityProvider02:
    Type: String
    Description: Third AZ capacity provider
  ServiceName:
    Type: String
    Default: example-service
    Description: A name for the service
  ImageUrl:
    Type: String
    Default: public.ecr.aws/docker/library/busybox:latest
    Description: The url of a docker image that contains the application process that
                 will handle the traffic for this service
  ContainerCpu:
    Type: Number
    Default: 256
    Description: How much CPU to give the container. 1024 is 1 CPU
  ContainerMemory:
    Type: Number
    Default: 512
    Description: How much memory in megabytes to give the container
  Command:
    Type: String
    Default: sleep 86400
    Description: The command to run inside of the container
  DesiredCount:
    Type: Number
    Default: 35
    Description: How many copies of the service task to run

Resources:

  # The task definition. This is a simple metadata description of what
  # container to run, and what resource requirements it has.
  TaskDefinition:
    Type: AWS::ECS::TaskDefinition
    Properties:
      Family: !Ref ServiceName
      Cpu: !Ref ContainerCpu
      Memory: !Ref ContainerMemory
      NetworkMode: awsvpc
      RequiresCompatibilities:
        - EC2
      ExecutionRoleArn: !Ref ECSTaskExecutionRole
      ContainerDefinitions:
        - Name: !Ref ServiceName
          Cpu: !Ref ContainerCpu
          Memory: !Ref ContainerMemory
          Image: !Ref ImageUrl
          Command: !Split [' ', !Ref 'Command']
          LogConfiguration:
            LogDriver: 'awslogs'
            Options:
              mode: non-blocking
              max-buffer-size: 25m
              awslogs-group: !Ref LogGroup
              awslogs-region: !Ref AWS::Region
              awslogs-stream-prefix: !Ref ServiceName

  # The service. The service is a resource which allows you to run multiple
  # copies of a type of task, and gather up their logs and metrics, as well
  # as monitor the number of running tasks and replace any that have crashed
  Service:
    Type: AWS::ECS::Service
    Properties:
      ServiceName: !Ref ServiceName
      Cluster: !Ref ClusterName
      PlacementStrategies:
        - Field: cpu
          Type: binpack
      CapacityProviderStrategy:
        - Base: 0
          CapacityProvider: !Ref CapacityProvider00
          Weight: 1
        - Base: 0
          CapacityProvider: !Ref CapacityProvider01
          Weight: 1
        - Base: 0
          CapacityProvider: !Ref CapacityProvider02
          Weight: 1
      DeploymentConfiguration:
        MaximumPercent: 200
        MinimumHealthyPercent: 100
      DesiredCount: !Ref DesiredCount
      NetworkConfiguration:
        AwsvpcConfiguration:
          SecurityGroups:
            - !Ref ServiceSecurityGroup
          Subnets:
            - !Select [ 0, !Ref SubnetIds ]
            - !Select [ 1, !Ref SubnetIds ]
            - !Select [ 2, !Ref SubnetIds ]
      TaskDefinition: !Ref TaskDefinition

  # Because we are launching tasks in AWS VPC networking mode
  # the tasks themselves also have an extra security group that is unique
  # to them. This is a unique security group just for this service,
  # to control which things it can talk to, and who can talk to it
  ServiceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: !Sub Access to service ${ServiceName}
      VpcId: !Ref VpcId

  # This log group stores the stdout logs from this service's containers
  LogGroup:
    Type: AWS::Logs::LogGroup

Things to note:

  • By default this template deploys 35 tasks. Consider increasing or decreasing this value as part of your test workload.

Put it all together

It’s time to deploy all this infrastructure. The following serverless application definition ties all the pieces together:

File: parent.yml Language: yml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93

AWSTemplateFormatVersion: "2010-09-09"
Transform: AWS::Serverless-2016-10-31
Description: Parent stack that deploys an ECS cluster that has a separate capacity
             provider per availability zone, as well as an ECS service that uses a
             capacity provider strategy to evenly distribute tasks to each AZ

Parameters:
  VpcId:
    Type: AWS::EC2::VPC::Id
    Description: VPC ID where the ECS cluster is launched
  SubnetIds:
    Type: List<AWS::EC2::Subnet::Id>
    Description: List of subnet IDs where the EC2 instances will be launched

Resources:

  # This stack contains cluster wide resources that will be shared
  # by all services that get launched in the stack
  ClusterStack:
    Type: AWS::Serverless::Application
    Properties:
      Location: cluster.yml
      Parameters:
        VpcId: !Ref VpcId

  # Capacity provider for the first availability zone
  AzCapacityProviderStack00:
    Type: AWS::Serverless::Application
    Properties:
      Location: single-az-capacity-provider.yml
      Parameters:
        SubnetId: !Select [0, !Ref SubnetIds]
        ClusterName: !GetAtt ClusterStack.Outputs.ClusterName
        EC2Role: !GetAtt ClusterStack.Outputs.EC2Role
        ContainerHostSecurityGroup: !GetAtt ClusterStack.Outputs.ContainerHostSecurityGroup
        CustomAsgDestroyerFunctionArn: !GetAtt ClusterStack.Outputs.CustomAsgDestroyerFunctionArn
        CustomAsgDestroyerFunctionRole: !GetAtt ClusterStack.Outputs.CustomAsgDestroyerFunctionRole


  # Capacity provider for the second availability zone
  AzCapacityProviderStack01:
    Type: AWS::Serverless::Application
    Properties:
      Location: single-az-capacity-provider.yml
      Parameters:
        SubnetId: !Select [1, !Ref SubnetIds]
        ClusterName: !GetAtt ClusterStack.Outputs.ClusterName
        EC2Role: !GetAtt ClusterStack.Outputs.EC2Role
        ContainerHostSecurityGroup: !GetAtt ClusterStack.Outputs.ContainerHostSecurityGroup
        CustomAsgDestroyerFunctionArn: !GetAtt ClusterStack.Outputs.CustomAsgDestroyerFunctionArn
        CustomAsgDestroyerFunctionRole: !GetAtt ClusterStack.Outputs.CustomAsgDestroyerFunctionRole

  # Capacity provider for the third availability zone
  AzCapacityProviderStack02:
    Type: AWS::Serverless::Application
    Properties:
      Location: single-az-capacity-provider.yml
      Parameters:
        SubnetId: !Select [2, !Ref SubnetIds]
        ClusterName: !GetAtt ClusterStack.Outputs.ClusterName
        EC2Role: !GetAtt ClusterStack.Outputs.EC2Role
        ContainerHostSecurityGroup: !GetAtt ClusterStack.Outputs.ContainerHostSecurityGroup
        CustomAsgDestroyerFunctionArn: !GetAtt ClusterStack.Outputs.CustomAsgDestroyerFunctionArn
        CustomAsgDestroyerFunctionRole: !GetAtt ClusterStack.Outputs.CustomAsgDestroyerFunctionRole

  # Define the strategy for distributing tasks across the capacity providers
  CapacityProviderStrategyStack:
    Type: AWS::Serverless::Application
    Properties:
      Location: capacity-provider-associations.yml
      Parameters:
        ClusterName: !GetAtt ClusterStack.Outputs.ClusterName
        CapacityProvider00: !GetAtt AzCapacityProviderStack00.Outputs.CapacityProvider
        CapacityProvider01: !GetAtt AzCapacityProviderStack01.Outputs.CapacityProvider
        CapacityProvider02: !GetAtt AzCapacityProviderStack02.Outputs.CapacityProvider

  # This service will be launched into the cluster by passing
  # details from the base stack into the service stack
  Service:
    Type: AWS::Serverless::Application
    # Ensure that the service stack get's torn down before the capacity provider stack
    DependsOn:
      - CapacityProviderStrategyStack
    Properties:
      Location: service-capacity-provider.yml
      Parameters:
        VpcId: !Ref VpcId
        SubnetIds: !Join [',', !Ref SubnetIds]
        ClusterName: !GetAtt ClusterStack.Outputs.ClusterName
        ECSTaskExecutionRole: !GetAtt ClusterStack.Outputs.ECSTaskExecutionRole
        CapacityProvider00: !GetAtt AzCapacityProviderStack00.Outputs.CapacityProvider
        CapacityProvider01: !GetAtt AzCapacityProviderStack01.Outputs.CapacityProvider
        CapacityProvider02: !GetAtt AzCapacityProviderStack02.Outputs.CapacityProvider

Note that this parent.yml file defines three copies of the single-az-capacity-provider.yml stack, one copy for each availability zone.

Deploy

You should now have five files:

  • cluster.yml - Define the ECS cluster and supporting infrastructure
  • single-az-capacity-provider.yml - Define an Auto Scaling group and ECS capacity provider for a single zone
  • capacity-provider-associations.yml - Links multiple capacity providers to the ECS cluster
  • service-capacity-provider.yml - Defines a service distributed across three capacity providers
  • parent.yml - Instantiates the other YAML files, including creating three copies of the zonal capacity provider

You can use the following commands to deploy the reference architecture to your account, using the default VPC. If you wish to utilize a dedicated VPC for this workload, then consider downloading and deploying the “Large sized VPC for an Amazon ECS cluster” as part of this parent.yml stack.

# Get the VPC ID of the default VPC on the AWS account
DEFAULT_VPC_ID=$(aws ec2 describe-vpcs --filters Name=is-default,Values=true --query 'Vpcs[0].VpcId' --output text)

# Grab the list of subnet ID's from the default VPC, and glue it together into a comma separated list
DEFAULT_VPC_SUBNET_IDS=$(aws ec2 describe-subnets --filters Name=vpc-id,Values=$DEFAULT_VPC_ID --query "Subnets[*].[SubnetId]" --output text | paste -sd, -)

# Now deploy the ECS cluster to the default VPC and it's subnets
sam deploy \
  --template-file parent.yml \
  --stack-name capacity-provider-environment \
  --resolve-s3 \
  --capabilities CAPABILITY_IAM \
  --parameter-overrides VpcId=$DEFAULT_VPC_ID SubnetIds=$DEFAULT_VPC_SUBNET_IDS

Test it out

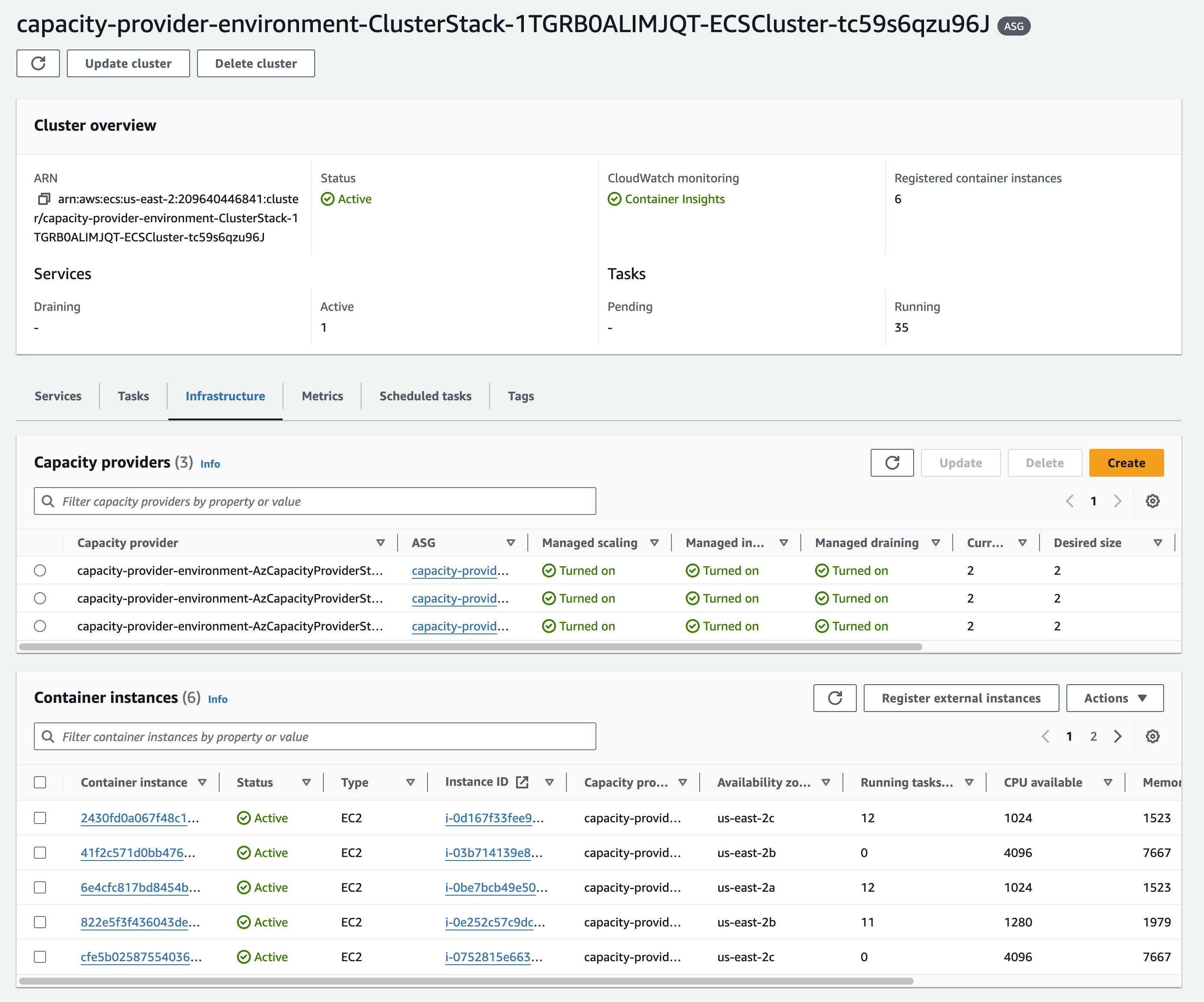

Use the Amazon ECS console to inspect the details of the cluster that was just deployed. You should see something similar to this:

Scale the service up and down and observe that perfect balance is achieved across each availability zone.

⚠️ Warning: Notice that each of the three capacity providers scales out to a minimum of two instances. This is because each capacity provider wants to provide high availability for itself, so it launches more than one instance to spread the tasks across. By separating the availability zones into three capacity providers we have created some extra redundancy across each zonal capacity provider. For this reason, this architectural approach is more intended for extremely large deployments, where there will be less overhead wasted space as each zonal capacity provider will be fully utilizing more than two EC2 instances anyway.

Operational Caveats

While this approach functions very well under typical circumstances, there is a caveat to consider for large deployments in the event of an availability zone outage.

If one of the zonal capacity providers is unable to provide capacity, then the tasks that are distributed to that capacity provider will not be able to be launched. Instead they will wait in PROVISIONING state until the capacity provider is able to obtain capacity.

Amazon ECS also has a per cluster limit on the number of tasks that can be in the PROVISIONING state. This limit is set to 500 tasks. Therefore if you have a deployment of 1500 tasks, distributed across three zonal capacity providers, and for some reason an entire availability zone of capacity is lost, there will be 500 tasks waiting in the PROVISIONING state. This may block other task launches for a time, until capacity is restored or the provisioning tasks time out and fail to launch.

To recover from such a scenario you could update your service’s capacity provider strategy to temporarily remove the failing availability zone from the capacity provider strategy, and force an update to the service.

For smaller deployments where there would be fewer than 500 tasks stuck in PROVISIONING state there will not be any issue of task launch deadlocks. You may still wish to respond to a zonal outage by scaling your service up to a larger size to distribute more tasks to the remaining zonal capacity providers. ECS will not automatically redistribute the PROVISIONING tasks to other capacity providers because the capacity provider strategy demands perfect balance.

Tear it Down

You can tear down the infrastructure created by this reference architecture by using the following command:

sam delete --stack-name capacity-provider-environment --no-prompts
